辰原科技有限公司

LED Display Screen

We enjoy the widest portfolio of display solutions including advertising signboard, large format displays, video wall displays, all of them were 4096 Full colors products.

Our comprehensive feature sets, best in class warranties and upstanding product reliability along with our industry expertise, is paramount to our commitment to bring you the ultimate immersive visual experience. Because we value our relationships with our customers, we constantly strive to provide the level of service and support that is expected of an industry leader.



Applications:

◇ Advertising signboard.




Features:
◇ Fancy selected components, fit for the poor-quality power network
◇ Special temperature - controlled disconnect technology used in MOV module and GDT module, stand to prevent thoroughly from fire risk
◇ Malfunction alarm (alarm interface), support for remote-montitoring
◇ Translucent indication windows can indicate working state clearly and directly
◇ Integrative design, convenient installation, simple maintenance

Related Standards :
◇ TUV

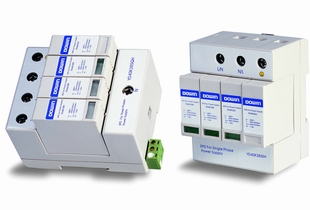

SPD For DC power supply

SPD For AC power distribution systems







Used to protect DC Power Supply

YD30Kxxx-EH Series















Model
YD30K045EH(K)
YD30K085EH(K)
Nominal voltage Vn
24VDC
-48VDC
Continuous operating voltage Vc
45VDC
-75VDC
Nominal discharge current In
15KA(8/20μS)
15KA(8/20μS)
Max discharge current Imax
30KA(8/20μS)
30KA(8/20μS)
Protection Level
Up (8/20μs In)
V0-V+
≦ 300V(0V~24V)
≦ 400V(0V~ -48V)
V0-V+
≦ 300V(0V~24V)
≦ 300V(0V~PE)
Mounting
Standard 35mm DINRail
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km







Used to protect AC Power Distribution Systems

YD25K385EH













Used in Zone ZPZ1 to Zone LPZ2 to protect single-phase power supply against over voltage.



Model
YD25K385EH
Nominal voltage Vn
220V
Continuous operating voltage Vc
385V
Nominal discharge current In
10KA(8/20μS)
Max discharge current Imax
25KA(8/20μS)
Protection Level Up (8/20μs In)
≦ 1500V (L - N, N - PE)
Mounting
Standard 35mm DINRail
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km
Weight
0.25kg





YD40K320DH2(K) A1















Used to protect single phase power supply against over voltage.

Model
YD40K320DH2(K) - A1
Nominal voltage Vn
220V
Continuous operating voltage Vc
320V ~ ( L - N ), 63V ~ ( N - PE)
Nominal discharge current In
20KA ( L - N, N - PE )
Max discharge current Imax
TYPE 2: 40 KA ( L - N, N - PE )
Protection Level Up (8/20μs In)
1600V ( L - N, N - PE )
Mounting
Standard 35mm DINRail
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km
Weight
0.25kg

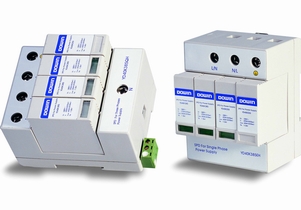

YD40K385xH-Series













Used in Zone ZPZ1 to Zone LPZ2 to protect single-phase or three-phase power supply against over voltage.

Model
YD40K385QH
YD40K385EH / YD40K385DH
Nominal voltage Vn
220V
220V
Continuous operating voltage Vc
320V
320V
Nominal discharge current In
20KA(8/20μS)
20KA(8/20μS)
Max discharge current Imax
40KA(8/20μS)
40KA(8/20μS)
Protection Level
Up (8/20μs In)
L-N
≦ 1800V
≦ 1800V
N-PE
≦ 800V
≦ 2000V
Residual Voltage
(Ures 8/20μs 20KA)
L-N
≦ 1800V
≦ 1800V
N-PE
≦ 800V
≦ 2000V
Mounting
Standard 35mm DINRail
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km
Weight
0.4kg



JDxxK385* (J) Series













Used in Zone LPZ0B to Zone LPZ1 to protec single-phase or three-phase power supply against over voltage.





Single- phase 220V

Model
JD060K385DH3(J)
JD080K385DH3(J)
Nominal voltage Vn
220V
220V
220V
Continuous operating voltage Vc
385V
385V
385V
Nominal discharge current In
25KA(8/20μS)
30KA(8/20μS)
40KA(8/20μS)
Max discharge current Imax
60KA(8/20μS)
80KA(8/20μS)
100KA(8/20μS)
Protection Level
Up (8/20μs In)
L-N
≦ 1800V
≦ 1800V
≦ 2000V
N-PE
≦ 700V
≦ 800V
≦ 900V
Residual Voltage
(Ures 8/20μs 20KA)
L-N
≦ 1500V
≦ 1500V
≦ 1500V
N-PE
≦ 600V
≦ 600V
≦ 600V
Mounting
Wall mounting, indoor
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km
Weight
0.411.8kg



Three- phase 220V

Model
JD060K385H4(J)
JD080K385H4(J)
Nominal voltage Vn
Three- phase
220V / 380V
Three- phase
220V / 380V
Three- phase
220V / 380V
Continuous operating voltage Vc
385V
385V
385V
Nominal discharge current In
25KA(8/20μS)
30KA(8/20μS)
40KA(8/20μS)
Max discharge current Imax
60KA(8/20μS)
80KA(8/20μS)
100KA(8/20μS)
Protection Level
Up (8/20μs In)
L-N
≦ 1800V
≦ 1800V
≦ 2000V
N-PE
≦ 700V
≦ 800V
≦ 900V
Residual Voltage
(Ures 8/20μs 20KA)
L-N
≦ 1500V
≦ 1500V
≦ 1500V
N-PE
≦ 600V
≦ 600V
≦ 600V
Mounting
Wall mounting, indoor
Working Environment
Temperature –40 ∼ +70°C, Humidity relative ≦ 95% (25 ℃ ), Altitude ≦ 3km
Weight
0.411.8kg
